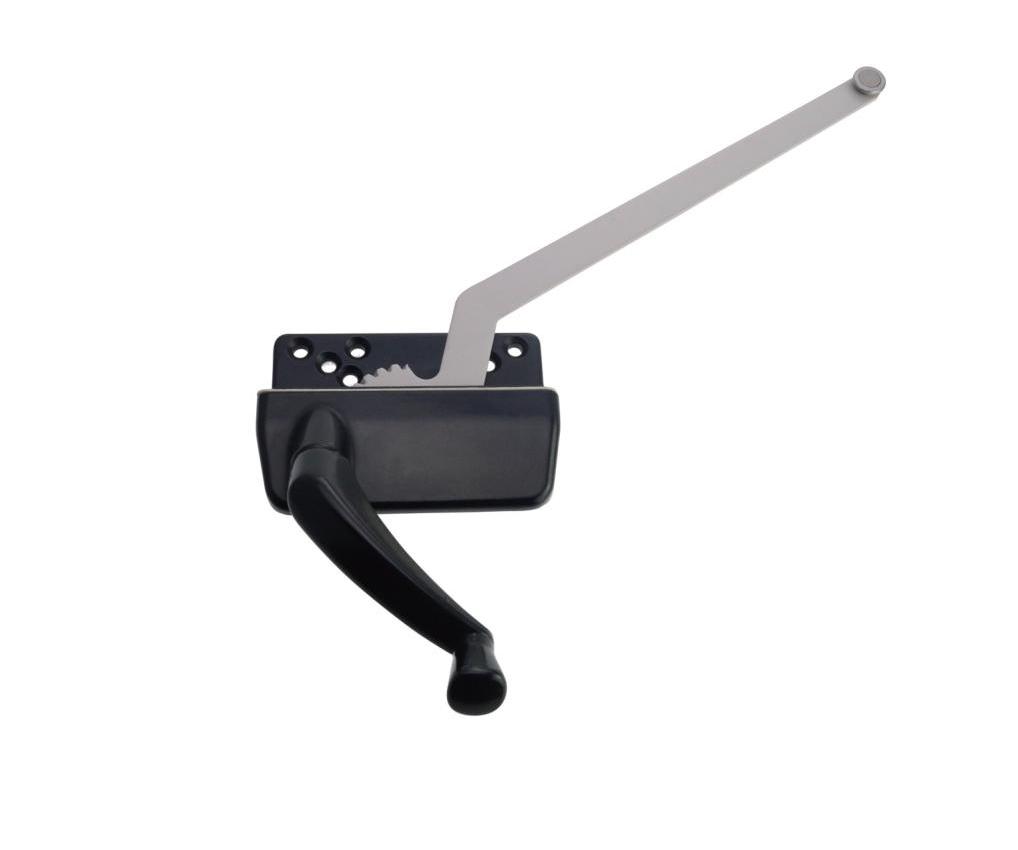

901 Single Arm Hand-operated Operator

Tips

• Optimum application window width : 17.7“ - 27.5”
• Recommended installation time: After the internal installation is complete
• Select operators of different specifications according to different window widths
• The operator has no load-bearing effect on the sash, please select the correct hinge strictly according to the sash weight

Specifications

*In order to facilitate the calculation of manufacturers, the units of dimensions in the display drawings are millimeters.

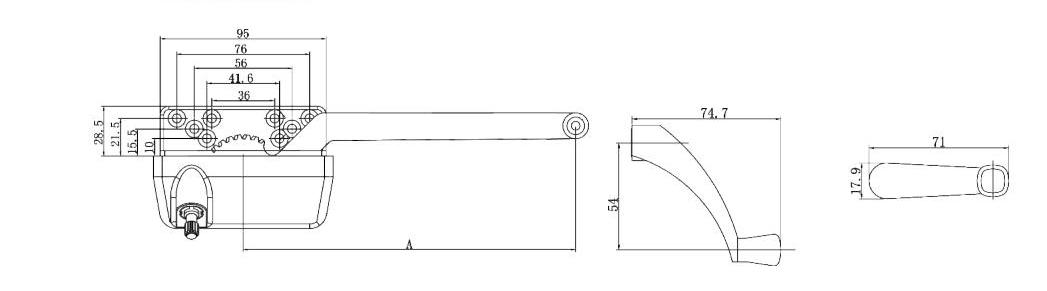

Drawing

Available Finishes

                White                                Black
